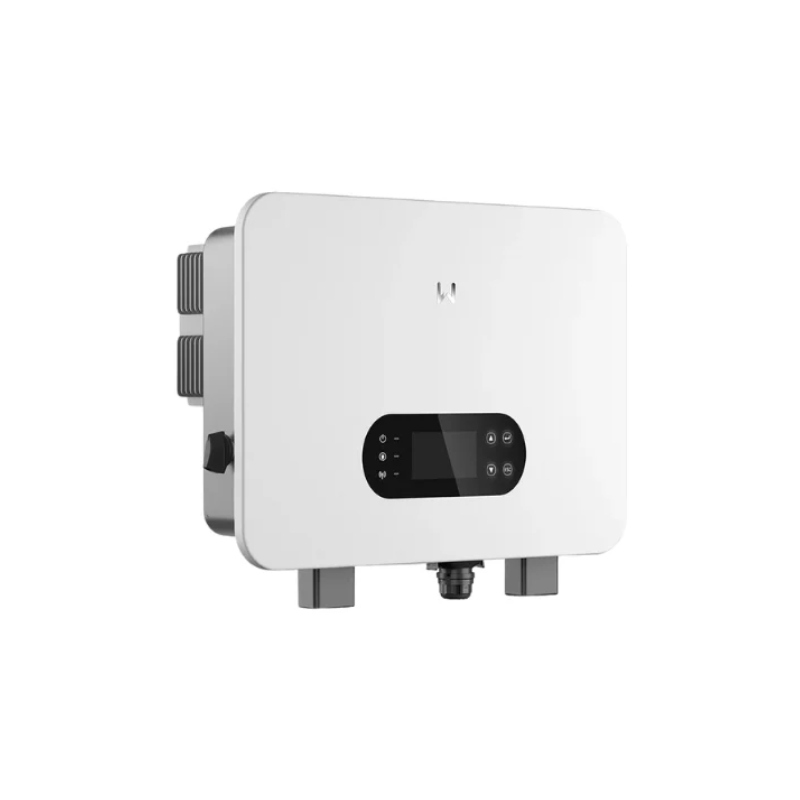

Goodwe 12kw Single phase Hybrid Inverter
Original price was: ₨435,000.₨430,000Current price is: ₨430,000.
The GoodWe 12kW single-phase hybrid inverter (typically the ES Uniq Series model GW12K-ES-C10) delivers 12,000W of continuous output power with 48V low-voltage battery compatibility. It features dual MPPT trackers, up to 200% PV oversizing capacity (supporting up to 24kW of solar panels), and fast backup switching under 10ms.
Description
Input Specifications (PV Solar)Max. PV Input Power: 24,000 WMax. DC Input Voltage: 600 VMPPT Operating Range: 60 V – 550 VMax. Input Current per MPPT: 32 A (16 A per string) Number of MPPT Trackers / Strings: 2 MPPTs with 2 strings per tracker Battery Specifications Battery Type: Low-voltage Lithium-ion or Lead-acid Nominal Battery Voltage: 48 V (48V to 51.2V)Max. Charging / Discharging Current: Up to 200 A / 240 A (depending on configuration)AC Output Specifications (On-grid & Backup) Rated AC Output Power: 12,000 WMax. AC Apparent Power: 13,200 VARated Output Voltage: 220 / 230 V (Single-Phase)Max. AC Output Current: 55 A / 60 A Switching Time (Backup UPS Mode): <10 ms (or <4 ms in optimal specs)Efficiency Max. Efficiency: 97.6%Euro Efficiency: 96.2%MPPT Efficiency: 99.9% System & General Data Scalability / Parallel Operation: Supports parallel connection of up to 6 to 16 units (depending on local grid standards) Protection Degree: IP66 (Dust and water-resistant for outdoor setup) Operating Temperature Range: -35°C to +60°C Communication: Wi-Fi, LAN, CAN, RS485, USB Monitoring: GoodWe SEMS Portal / AppYou can review the official product overview and documentation portal via the GoodWe ES Uniq Series page.If you’d like, let me know: What specific battery brand or capacity you plan to pair with it Whether you need help with load calculations for your home or office I can help you design or size your solar setup properly.
Additional information
| Manufacturer | Goodwe |
|---|
